GSM VoIP Gateway

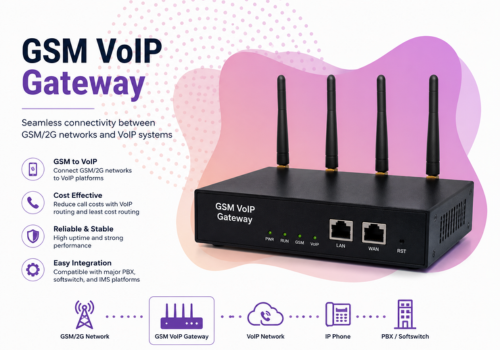

What Is GSM VoIP Gateway

Smoothly transit between mobile and VoIP network


GSM/CDMA VoIP Gateway is a multi-functional product used to effectively implement the smooth transition between mobile and VoIP network. It has great improvement not only in software features but also in new hardware structure design. It is fully compatible solution to your need and easy to use. Moreover, with built-in 4–1 antenna power divider which is saving space and more easier to install and maintain. The Dinstar UC2000 series VoIP GSM/3G/4G Gateways offer complete choices scalable from 1 to 32 channels, implement the state-of-the-art functionality in market as always, and enable the smooth transit between mobile and VoIP networks. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. GSM Gateways are perfect for redundancy, T1 outages, or as a connection in places where inexpensive analog or SIP connections are not available. They are ideal for remote locations where you have cellular connection but no Internet. If need be, with a GSM Gateway you can create and run you entire remote phone system off of back up power and a cell tower. For added assurance, you can add on a Go3 No Questions Asked replacement warranty!

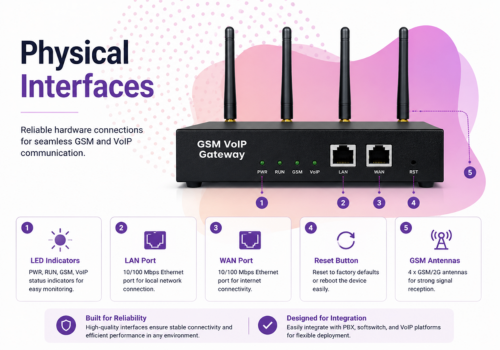

Physical Interfaces

GSM Fixed Wireless Terminal AF01


  • SIM Card Slot: 4 to 32 Channels
  • Ethernet Interface: 2 LAN 10/100M Base-Tx RJ45
  • Console: 1* RS232 115200bps
  • Antennas Connectors: SMA.
  • LED Indicators : PWR, RUN, Signal Strength, On/Off- hook
  • Reset Button
  • SIM Card Installation : Local SIM/Remote SIM with SIMBank

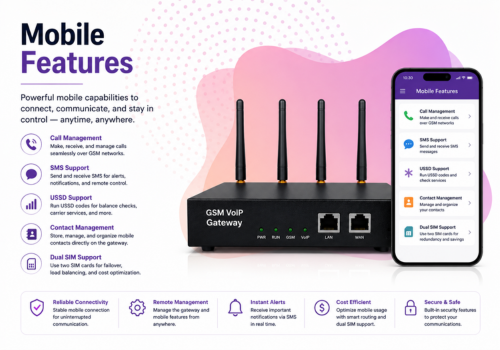

Mobile Feature

Mobile Feature

  • Frequency ranges
  • GSM: 850/900/1800/1900MHz
  • CDMA: 800Mhz
  • WCDMA:2100MHz(Optional)
  • SMS/SMSC/USSD
  • SMS Coding/Decoding: ASCII/UCS2
  • Open API Protocol
  • PIN Code Management
  • Call Duration Limitation for SIM Card/Single Call
  • Polarity Reversal (GSM)
  • Answer Delay (CDMA)
  • Carrier Selection
  • Caller ID Restriction for Outgoing Call
  • BCCH Management
  • Call Waiting
  • Call Forwarding

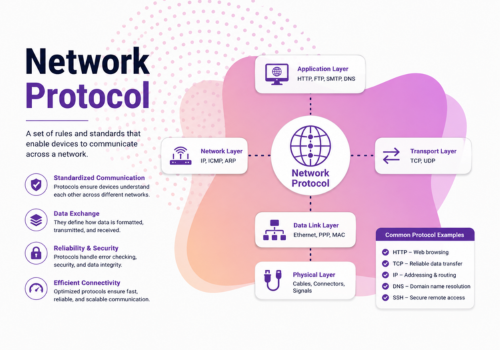

Network Protocol

Network Protocol

A network protocol is a set of established rules that dictate how to format, transmit and receive data so that computer network devices -- from servers and routers to endpoints -- can communicate, regardless of the differences in their underlying infrastructures, designs or standards. To successfully send and receive information, devices on both sides of a communication exchange must accept and follow protocol conventions. In networking, support for protocols can be built into software, hardware or both.

  • IP v4, UDP/TCP, PPPoE, DHCP, FTP / TFTP ARP, RARP, NTP
  • VPN PPTP
  • Encryption: RC4,MD5 (Coming Soon)
  • IP v6 (Coming Soon).
  • HTTP, Telnet

Voice Capability

G.711A/U law, G.723.1, G.729A/B
G.711A/U law, G.723.1, G.729A/B
Silence Suppression & Detection
Silence Suppression & Detection
Comfort Noise Generation(CNG)
Comfort Noise Generation(CNG)
Voice Activity Detection(VAD)
Voice Activity Detection(VAD)
Echo Cancellation(G.168)
Echo Cancellation(G.168)
Adaptive (Dynamic) Jitter Buffer
Adaptive (Dynamic) Jitter Buffer
Programmable Gain Control
Programmable Gain Control
Call Progress Tone Generation
Call Progress Tone Generation

SIP Characters and Physical Properties

SIP Characters
  • SIP V2.0 RFC3261
  • SDP RFC2327
  • Session Timer RFC4028
  • RTP/RTCP RFC3551
  • SIP Registration
  • SIP Trunk ( Peer Mode)
  • SIP Trunk Group
  • Ringback (Immediately, Alerting)
  • Configurable SIP Release Code
  • DNS SRV/A Query
  • Outbound Proxy
  • DTMF Mode: Signal/RFC2833
  • NAT Traversal
  • Dynamic NAT, Static NAT, STUN
Physical Properties
  • Power Supply
  • Input:100-240V,50-60Hz
  • Output: DC12V 4.0A
  • Power Consumption:
  • DWG2000E-4G: 20w
  • DWG2000E-8G: 25w
  • Temperature:
  • Operation: 0 ℃ ~ 45 ℃
  • Storage: -20 ℃ ~80 ℃
  • Operation Humidity:
  • 10%-90% No Condensation
  • Dimension(W/D/H): 250*156*32.5mm
  • Package Weight: 2.05kg
