Voice Logger
Record all calls over a single or multiple phone line.
USB Voice Logger 2102 (2 Channel TVRS)
Features
- 2 times hardware compression
- Customized incoming & outgoing call pop-up
- CRM integration
- MS Access & MS SQL data base support
- Scheduled FTP backup transfer
- CD or remote location network backup

- Voice activation / Voltage change based recording
- On demand recording
- Flexible reporting
- Web based remote access
- Direct P&T line , all EPABX extension compatible
- System health diagnosis alarm
- SMS / email alert integration
- GSM recording with FCT/Gateway
Technical Specification
- 2102 Card Size --158mm*108mm*20mm
- Compression ratio: 2 Hardware
- Working Temperature----0-50
- Power Consumption : 5W
- Humidity : 10% -80%
- Voice codec : PCMA law@64kbps,
- SPEEX@8KBPS
- Voice distortion ratio : ≤2%
- Voice Function : WAV, VD8,AGC
- Data rate: 64KBPS32KBPS16KBPS
- Data transmission : Binary asynchronous serial
- Signal Monitor : Signal sound voice sound
- Signal to noise : ≥30dB
- Input impedance : >1000Ω
- Codec ; HDB3 /AMI
- DTMF code: 0~9*#ABCD
- Master Number : BEL202, DTMF
- Frequency range : 300-3400Hz±3dB
- Clock & data recording : Complied to CCITT Rec.G.823-1998
- Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
- Shaking limit Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988

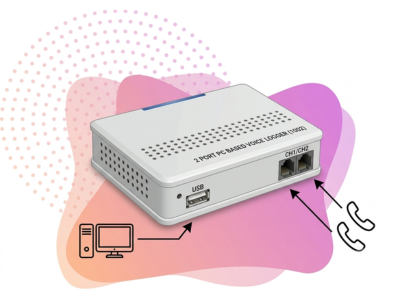

USB Voice Logger 1002 (2 Port)
Features
- 2 times hardware compression
- customized incoming & outgoing call pop-up
- MS Access & MS SQL data base support
- Scheduled FTP backup transfer
- CD or remote location network backup
- On demand recording
- Web based remote access
- Direct P&T line , all EPABX extension compatible
- System health diagnosis alarm
- GSM recording with FCT/Gateway

Technical Specification
- 1002 Card Size --158mm*108mm*20mm
- Compression ratio: 2 Hardware
- Working Temperature----0-50
- Power Consumption : 5W
- Humidity : 10% -80%
- Voice codec : PCMA law@64kbps, SPEEX@8KBPS
- Voice distortion ratio : ≤2%
- Voice Function : WAV, VD8,AGC
- Data rate: 64KBPS32KBPS16KBPS
- Data transmission : Binary asynchronous serial
- Signal Monitor : Signal sound voice sound
- Signal to noise : ≥30dB
- Input impedance : >1000Ω
- Codec ; HDB3 /AMI
- DTMF code: 0~9*#ABCD
- Master Number : BEL202, DTMF
- Frequency range : 300-3400Hz±3dB
- Clock & data recording : Complied to CCITT Rec.G.823-1998
- Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
- Shaking limit Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988

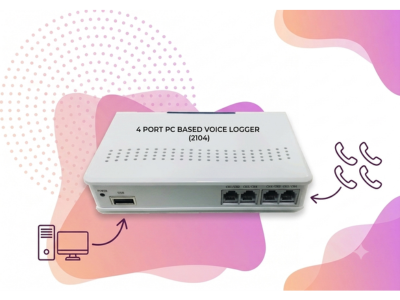

4 Port PC Based Voice Logger (2104)
Features
- 2 time hardware compression
- customized incoming & outgoing call pop-up
- CRM integration
- MS Access & MS SQL data base support
- Scheduled FTP backup transfer
- CD or remote location network backup
- Voice activation / Voltage change based recording
- On demand recording
- Flexible reporting
- Web based remote access
- GSM recording with FCT/Gateways

- Direct P&T line , all EPABX extension compatible
- System health diagnosis alarm
- SMS / email alert integration
Technical Specification
- Compression ratio: 2 Hardware
- Working Temperature----0-50
- Power Consumption : 5W
- Humidity : 10% -80%
- Voice codec : PCMA law@64kbps, SPEEX@8KBPS
- Voice distortion ratio : ≤2%
- Voice Function : WAV, VD8,AGC
- Data rate: 64KBPS32KBPS16KBPS
- Data transmission : Binary asynchronous serial
- Signal Monitor : Signal sound voice sound
- Signal to noise : ≥30dB
- Input impedance : >1000Ω
- Codec ; HDB3 /AMI
- DTMF code: 0~9*#ABCD
- Master Number : BEL202, DTMF
- Frequency range : 300-3400Hz±3dB
- Clock & data recording : Complied to CCITT Rec.G.823-1998
- Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
- Shaking limit Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988

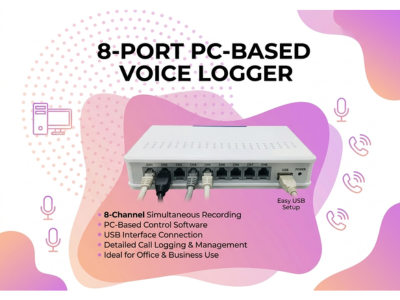

8 Port PC Based Voice Logger (2108)
Features
- 2 time hardware compression
- customized incoming & outgoing call pop-up
- CRM integration
- MS Access & MS SQL data base support
- Scheduled FTP backup transfer
- CD or remote location network backup
- Voice activation / Voltage change based recording
- On demand recording
- Flexible reporting
- Web based remote access

- System health diagnosis alarm
- SMS / email alert integration
- GSM recording with FCT/Gateways
- Direct P&T line , all EPABX extension compatible
Technical Specification
- Compression ratio: 2 Hardware
- Working Temperature----0-50
- Power Consumption : 5W
- Humidity : 10% -80%
- Voice codec : PCMA law@64kbps, SPEEX@8KBPS
- Voice distortion ratio : ≤2%
- Voice Function : WAV, VD8,AGC
- Data rate: 64KBPS32KBPS16KBPS
- Data transmission : Binary asynchronous serial
- Signal Monitor : Signal sound voice sound
- Signal to noise : ≥30dB
- Input impedance : >1000Ω
- Codec ; HDB3 /AMI
- DTMF code: 0~9*#ABCD
- Master Number : BEL202, DTMF
- Frequency range : 300-3400Hz±3dB
- Clock & data recording : Complied to CCITT Rec.G.823-1998
- Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
- Shaking limit Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988

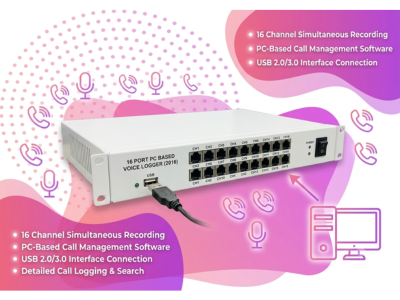

16 Port PC Based Voice Logger (2016)
Features
- 2 time hardware compression
- customized incoming & outgoing call pop-up
- CRM integration
- MS Access & MS SQL data base support
- Scheduled FTP backup transfer
- CD or remote location network backup
- Voice activation / Voltage change based recording
- On demand recording
- Flexible reporting

- Web based remote access
- Direct P&T line , all EPABX extension compatible
- System health diagnosis alarm
- SMS / email alert integration
- GSM recording with FCT/Gateways
Technical Specification
- Compression ratio: 2 Hardware
- Working Temperature----0-50
- Power Consumption : 5W
- Humidity : 10% -80%
- Voice codec : PCMA law@64kbps, SPEEX@8KBPS
- Voice distortion ratio : ≤2%
- Voice Function : WAV, VD8,AGC
- Data rate: 64KBPS32KBPS16KBPS
- Data transmission : Binary asynchronous serial
- Signal Monitor : Signal sound voice sound
- Signal to noise : ≥30dB
- Input impedance : >1000Ω
- Codec ; HDB3 /AMI
- DTMF code: 0~9*#ABCD
- Master Number : BEL202, DTMF
- Frequency range : 300-3400Hz±3dB
- Clock & data recording : Complied to CCITT Rec.G.823-1998
- Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
- Shaking limit Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988
PRI/ISDN/E1 PC Based Voice Logger
Features
- 2 time hardware compression
- customized incoming & outgoing call pop-up
- CRM integration
- MS Access & MS SQL data base support
- Scheduled FTP backup transfer
- CD or remote location network backup
- Voice activation / Voltage change based recording
- On demand recording
- Flexible reporting
- Web based remote access
- Direct P&T line , all EPABX extension compatible

- System health diagnosis alarm
- SMS / email alert integration
- GSM recording with FCT/Gateways
Technical Specification
- Compression ratio: 2 Hardware
- Working Temperature----0-50
- Power Consumption : 5W
- Humidity : 10% -80%
- Voice codec : PCMA law@64kbps, SPEEX@8KBPS
- Voice distortion ratio : ≤2%
- Voice Function : WAV, VD8,AGC
- Data rate: 64KBPS32KBPS16KBPS
- Data transmission : Binary asynchronous serial
- Signal Monitor : Signal sound voice sound
- Signal to noise : ≥30dB
- Input impedance : >1000Ω
- Codec ; HDB3 /AMI
- DTMF code: 0~9*#ABCD
- Master Number : BEL202, DTMF
- Frequency range : 300-3400Hz±3dB
- Clock & data recording : Complied to CCITT Rec.G.823-1998
- Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
- Shaking limit Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988
